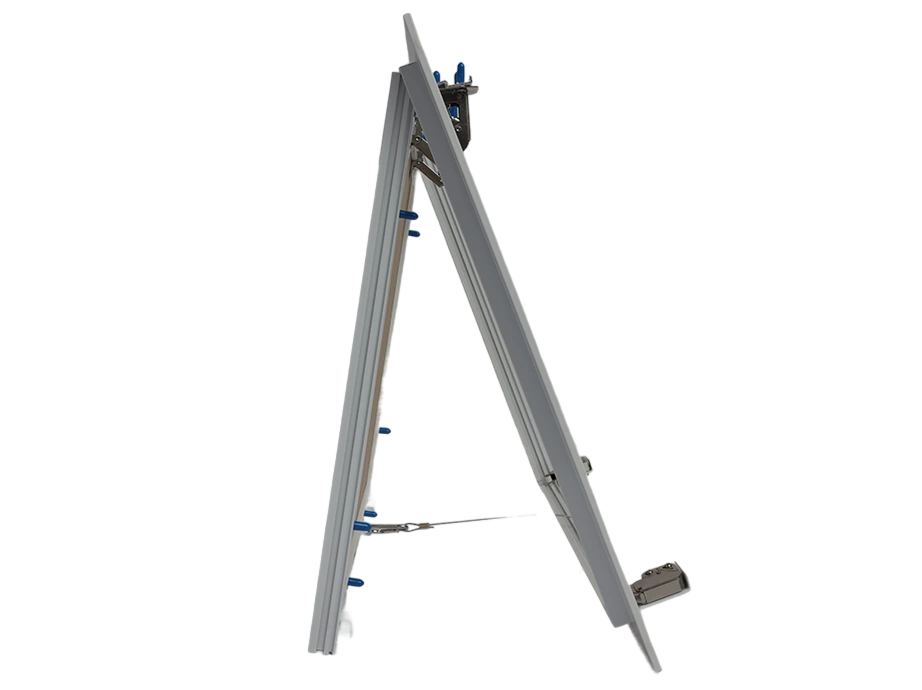

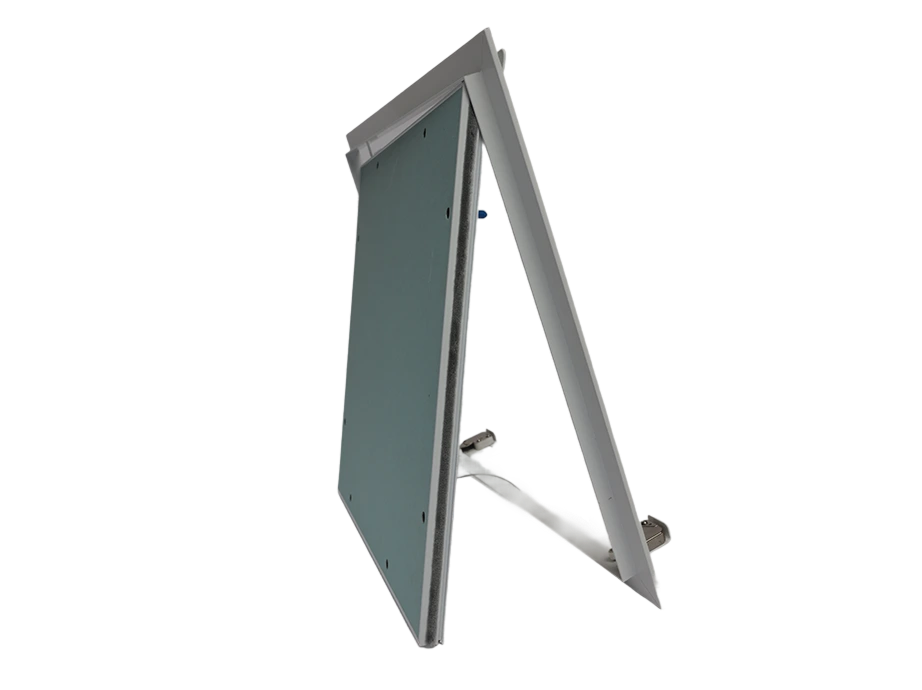

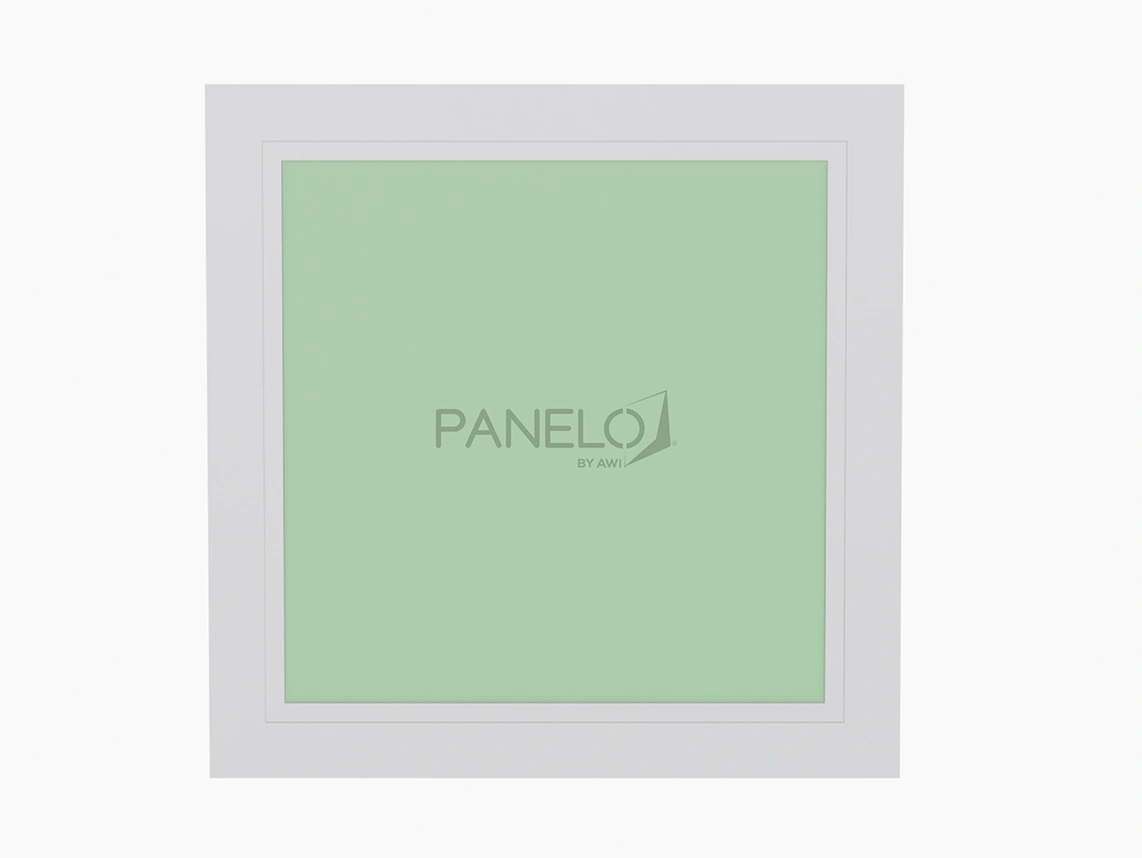

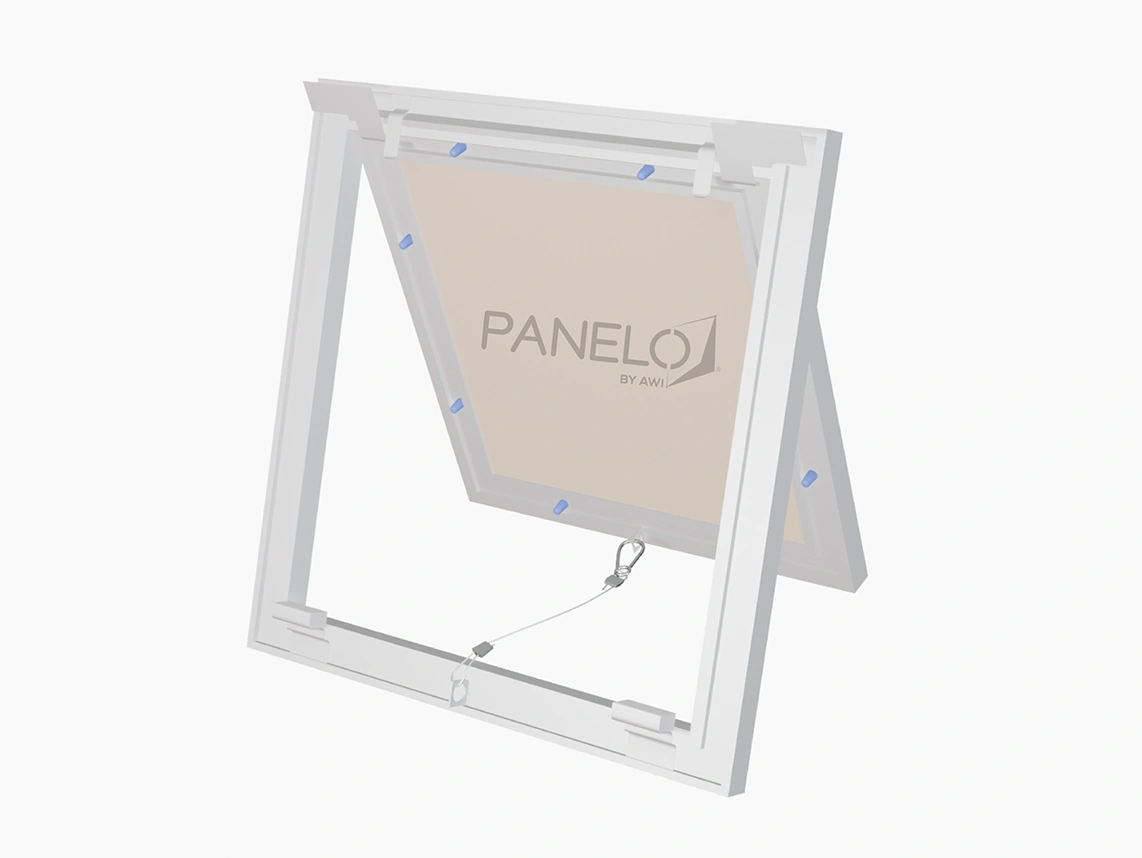

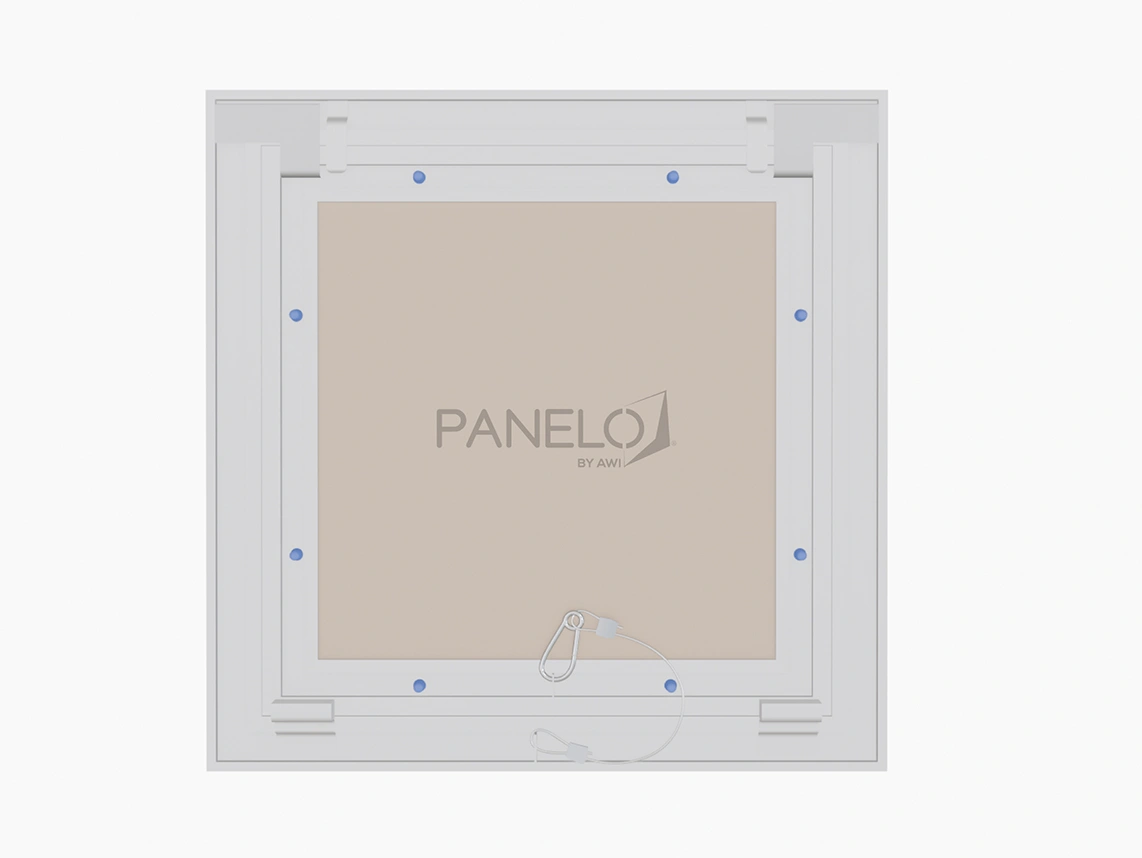

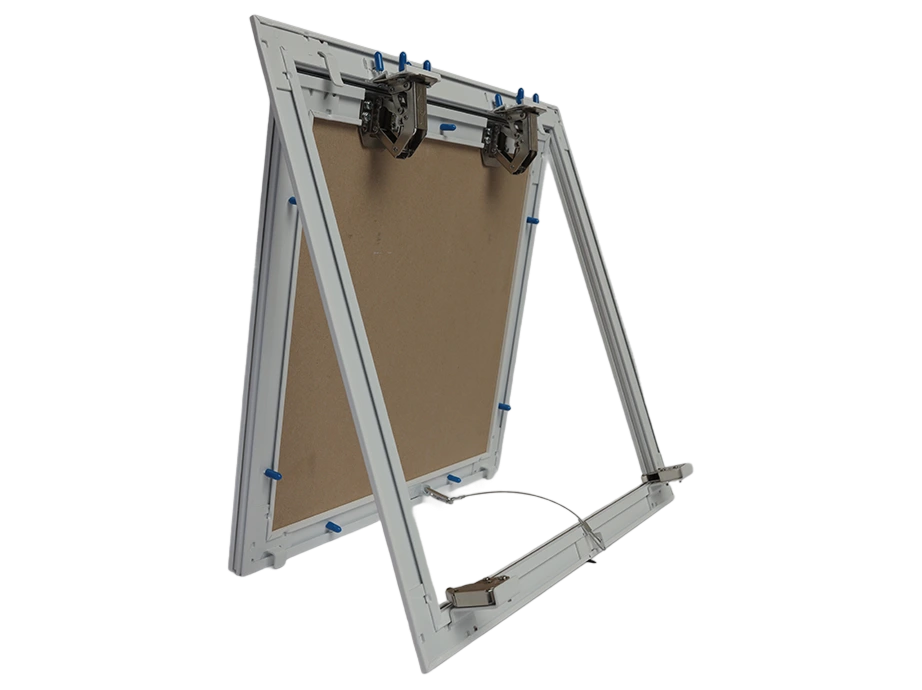

PANELO by Al Waseef Industries access panel consists of different types of ceiling Access Panels with the combination of Powder Coated Extruded Aluminium and MR Gypsum Board with special push to open system and hinges. Access Panels with Fire Resistant / Regular Gypsum Boards, can be manufactured to order. The standard colour of Aluminium frame used for the Access Panel is RAL 9016, but we can arrange any colour if required. A strong support of hinges and locks in our Access Panels provide a rigid assembly to close precisely after every use. In a closed position, the Access Panels show two fine edges of frames separated by a gap of 1mm to 2mm.
Various other types of access panels like Diuser type, Wall mount type, etc. can be manufactured.
We can also manufacture other sizes of Access panels as per the client’s requirement.
| APPLICATION |
|---|
|
Suitable for installation within drywall partitions and ceilings |
|
Ready for direct tiling on-site |
|
Prepared for surface finishing |
| PROPERTIES |
|---|
|
Corners of the frame are reinforced with non-corrosive galvanized steel angles |
|
Self-activating pressured spring locks |
|
Flush bonded MR gypsum board made complying to EN520 standard. |
|
Safety latch secured by galvanized angle on the inner side of frame. |
| No. | Installation | Standard Sizes |
|---|---|---|
| 1 | Mark the area which the panel has to be fixed. Cut the marked area required to suit the pre-installed panel. | 300mm x 300mm |
| 2 | Each Panelo Access Panel is supplied pre-assembled and pre-installed with a border panel of gypsum board (Standard Type). | 400mm x 400mm |
| 3 | Arrange the ceiling finishes to suit the location of the access opening. | 450mm x 450mm |
| 4 | If necessary, trim the outer border of the Access Panel to centre the opening. | 500mm x 500mm |
| 5 | Use Dry Wall Screws , fix the complete panel assembly to the furring ceiling system. | 600mm x 600mm |
| 6 | The joints and edges of the fixed system has to be taped and finished in the normal manner. | 600mm x 900mm |
| 7 | Paint the ceiling surface including the area of Access Panel. | 600mm x 1200mm |
| TECHNICAL DATA | |
|---|---|
| Frames Frames made from stable aluminum profile .BS EN 755 - 9: 2016 Manufactured to: ISO 9001: 2008 | Size standard sizes
|
| Connecting Frame Parts Galvanized Iron. | |
| Material Inlay Moisture resistant (MR) gypsum board. | |
| Screws Phosphated, rust-prevented, spike protected with cap. | Actual door opening size
|

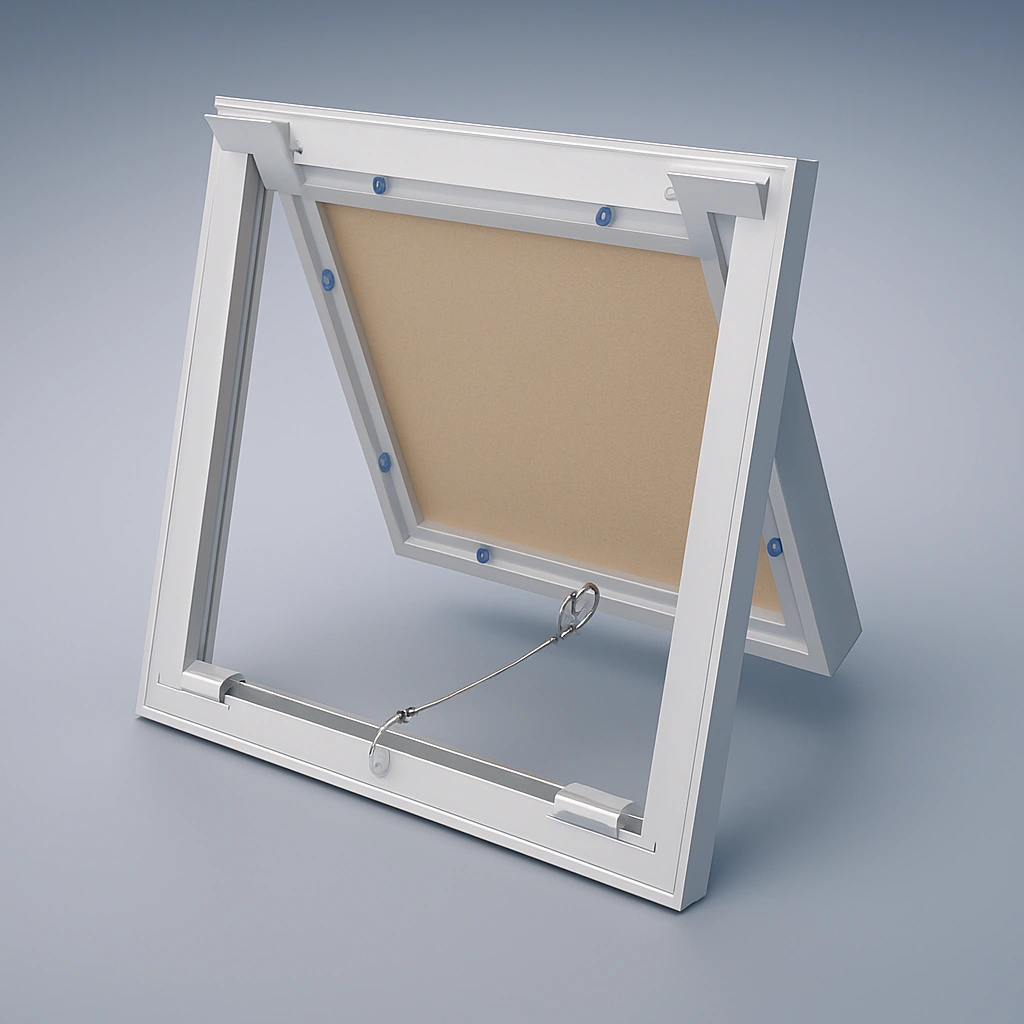

| Closing / Opening Mechanism 2 x Spring loaded galvanized steel locks with safety chain. | |
